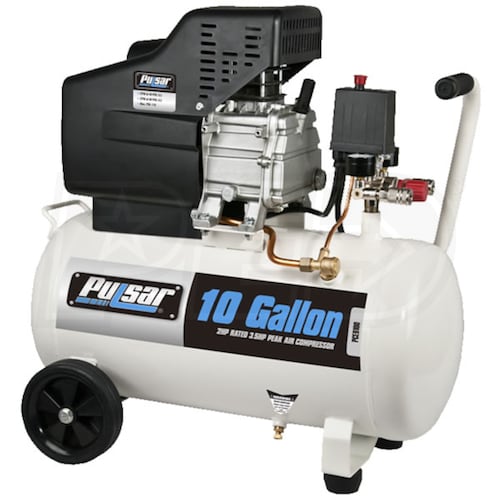

Pulsar 3.5-HP 10-Gallon Air Compressor
Pulsar 3.5-HP 10-Gallon Air Compressor
Model: PCE6100
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

4.2

Tank Size

10

  • Compact & Easy To Move
  • Great for projects around the house & garage
  • Top off tires, inflate toys & sports balls, blow off mower debris
  • Also handles air brushing, stapling, brad & finish nailing
  • Oil Lubricated
  • Easy to maintain; produces 5.2 CFM @ 40PSI, 4.2 CFM @ 90PSI
  • Enclosed Shroud
  • Protects the 3.5 peak-HP motor & pump
  • Runs on normal household 3-prong outlets; 13 amps & above
  • Top Mounted Gauges
  • Check tank & tool pressure at a glance, right at the hose
  • Dual Quick Connect Air Outlets
  • Run 2 tools at once for maximum efficiency

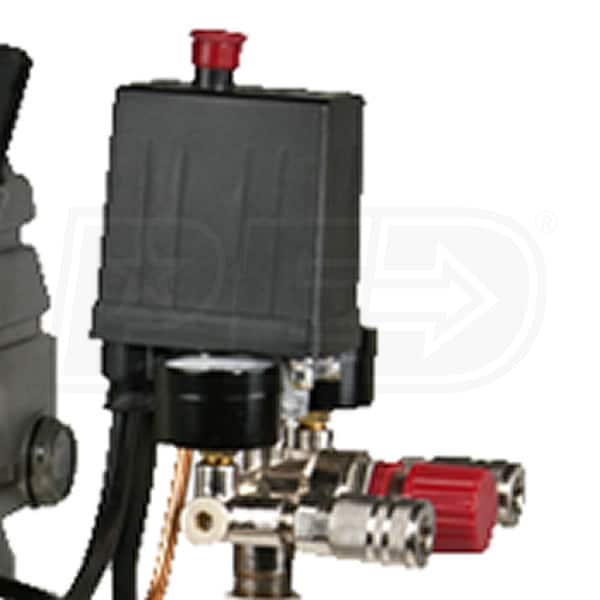

  • Pressure Regulator
  • Adjust the pressure to suit your project; 115 PSI max pressure
  • Kicks in at 95 PSI, kicks out at 115 PSI
  • Convenient Handle & Wheels
  • Easy to transport & store
  • Anti-Vibration Feet
  • Provides quieter, more stable operation
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PCE6100
specs product image PID-13880
Motor
Voltage
120 Volt AC
Phase
1-Phase
Engine
HP
3.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.2
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
115 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
61.1 Pounds
Certification
ETL
Consumer Warranty
1 Year
Product Length
29 Inches
Product Width
13 Inches
Product Height
26 Inches
Power Type
Electric
UPC
819699010159
