Puma DC02
Puma DC02
Hover to zoom
1 Of 5

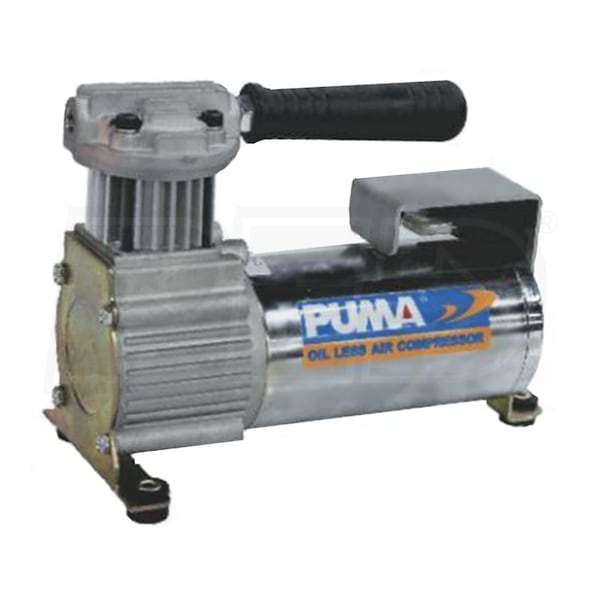

Puma 1/4-HP 12-Volt 50% Duty Tankless Air Compressor

Model:

DC02

Write A Review
$119.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Puma 1/4-HP 12-Volt 50% Duty Tankless Air Compressor
Puma 1/4-HP 12-Volt 50% Duty Tankless Air Compressor
Model: DC02
$119.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

0.48

Tank Size

0

  • Oil-Less, Direct-Drive Design
  • Allows unit to be mounted in any direction
  • Ideal for offroad, RV, agriculture, construction & motorsport use
  • Runs On 12-Volt DC Power
  • Use anywhere you can mount a battery & need on-board air
  • Requires 20aH battery (battery & cables not included)
  • Patented Pump Design
  • Runs with lower noise (68dB) & improved cooling
  • Deep Cooling Fin Design On Cylinder Head & Cylinders
  • High efficiency cooling helps the pump last longer
  • Oversized Motor Cooling Fan
  • Helps prevents the motor from overheating
  • 50% Duty Cycle
  • Ideal for high-demand applications in small places
  • Tankless
  • Can be used with a tank (sold separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DC02
specs product image PID-13969
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
18
Engine
HP
0.25
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
0.48
CFM Rated @
90 PSI
CFM @ 40 PSI
0.72
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
50%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
6 Pounds
Consumer Warranty
1 Year
Product Length
8.2 Inches
Product Width
4 Inches
Product Height
6.2 Inches
UPC
636084011016

Reviews

(2)
Puma DC02 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
Hi Steve, I'm looking for a small compressor the will not take up much space in the trunk of my car to use to inflate tires in an emergency. This Puma 1/4-HP 12v seems to fit the bill. I would need a power cord to plugin to my car lighter that is long enough to reach all wheels. Please give me your opinion. Thanks
Fred
from Georgia
October 05, 2016
