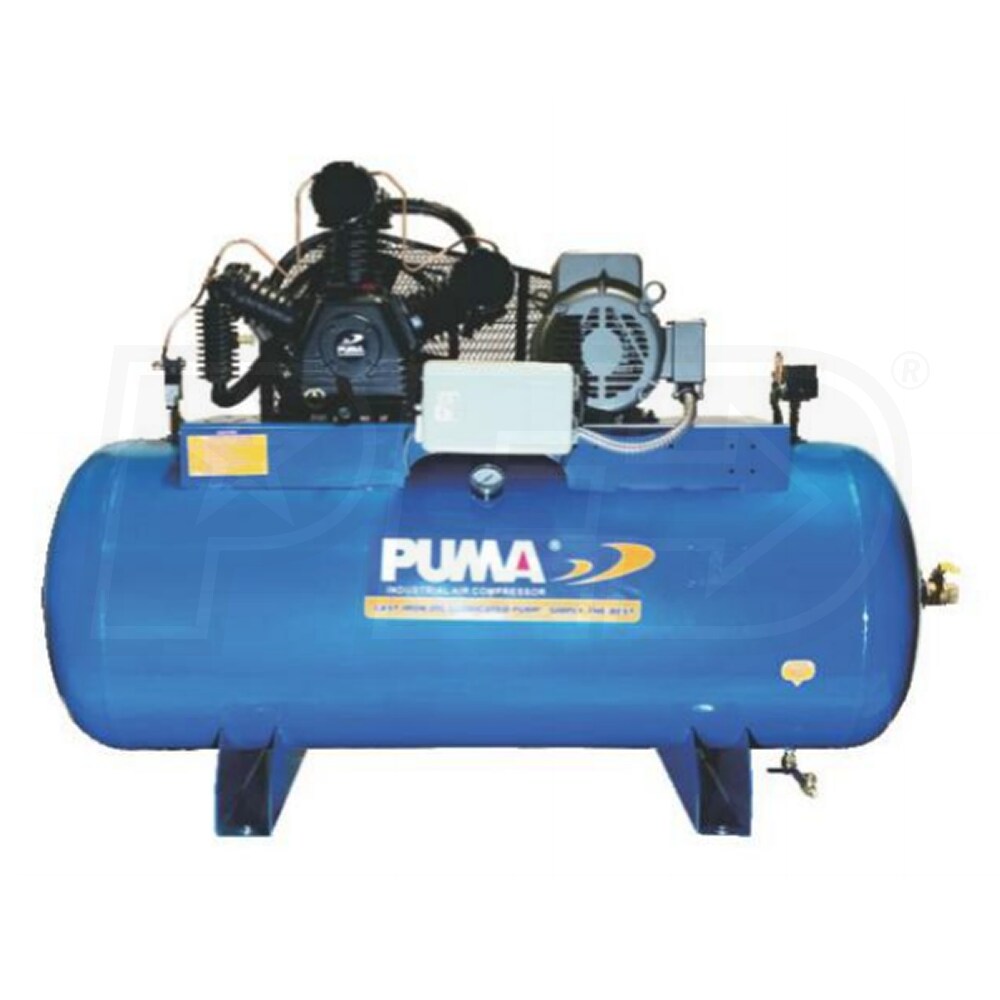

Puma 7.5-HP 120-Gallon Two-Stage Air Compressor (280-230V 3-Phase)
Model:
TUK-75120M3-230
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
3-Phase
CFM
24
Tank Size
120
- 208-230 Volt, 3-Phase Induction Motor
- Lower RPM (1740) helps motor run cooler, last longer
- Magnetic Starter With Overload Protection
- Soft start for smooth operation
- Oil Lubricated 2-Stage Cast-Iron Pump
- Powerful, durable & reliable; suited for commercial applications
- Produces 24 CFM at 90 PSI & 23 CFM at 175 PSI
- Lower RPM (660) helps pump run cooler, last longer
- 120 Gallon Horizontal Tank
- Top mounted controls for easy access
- Rated to 175 PSI; ASME & CRN certified for safety
- Tank drain conveniently located on the same side as air outlet
- Belt Drive
- Full enclosure protects the belt & operator
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
TUK-75120M3-230
General Information
Product Category
Air Compressor - Stationary
Engine
HP
7.5
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
19.8 - 17.9
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
950 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
80 Inches
Product Width
31 Inches
Product Height
75 Inches
Power Type
Electric
UPC
636084025099
