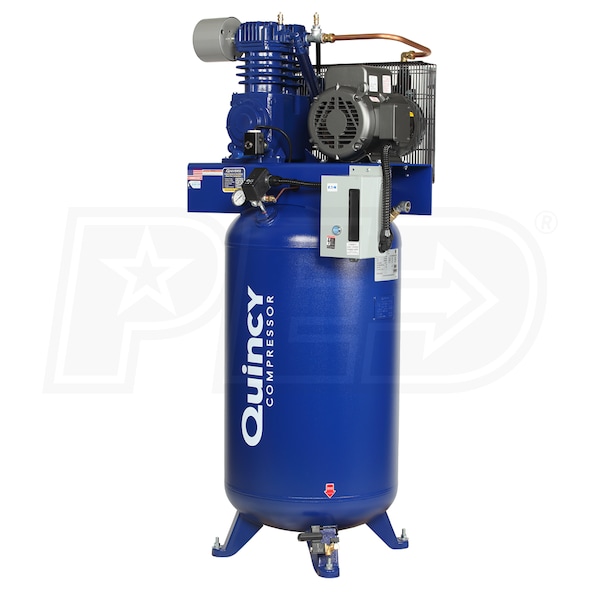

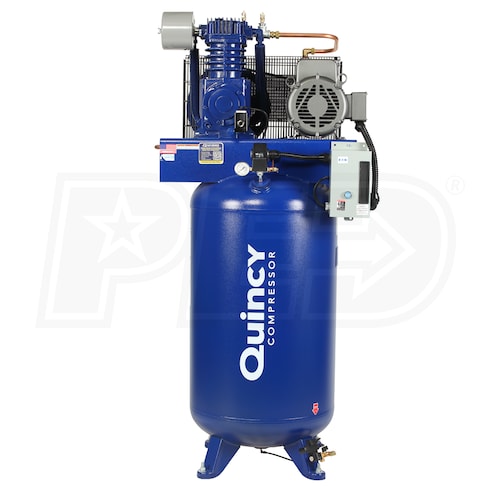

Quincy QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Model:

471CS80VCBM

Write A Review
$4,999.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

Quincy QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Quincy QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: 471CS80VCBM
$4,999.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

22.6

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Heavy Duty Industrial Components
  • 50,000 hour -or more- pump life; 5 year pump warranty
  • 1725 rpm industrial motor to continuously run your business
  • Special Low Oil Protection & Extra Capacity Oil Reserve
  • Extends the life of the splash lubricated, cast-iron pump
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • Magnetic Starter
  • Provides thermal overload protection for the motor
  • 2-Piece Connection Rods
  • Fewer moving parts increases reliability
  • ASME Certified; Proudly Built In The USA
  • Pressure relief valve, discharge and receiver tank for safety
  • Automatic Tank Drain & Air-Cooled Aftercooler
  • Less maintenance and prolongs tank life
  • Allows use with a refrigerated air dryer (sold separately)
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039827 - Quincy Model #: 271C80VCB23M
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

471CS80VCBM
specs product image PID-3347
General Information
Product Category
Air Compressor - Stationary
Engine
HP
7.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22.6
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
720 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326114501
Additional Model Numbers

271C80VCBM, 471CS80VCBM
