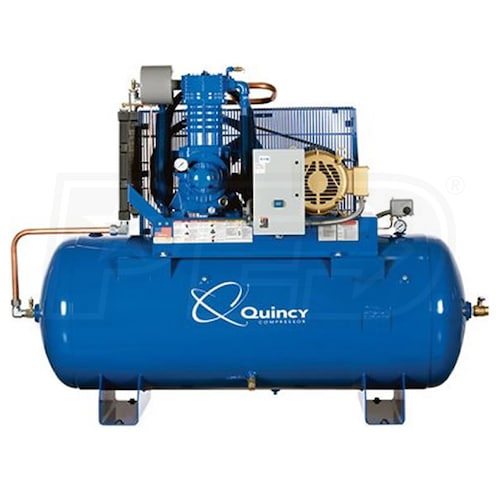

Quincy QP Pro 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)

Model:

5103DS12HCA20

Write A Review
$6,299.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Quincy QP Pro 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)
Quincy QP Pro 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)
Model: 5103DS12HCA20
$6,299.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

35

Tank Size

120

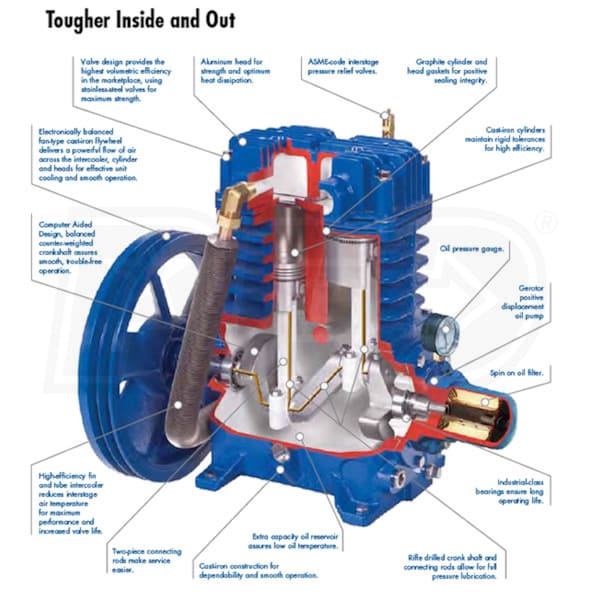

  • Fully Pressure Lubricated 2-Stage Compressor
  • Allows smooth, continuous operation
  • Pressurized oil means less wear on critical components
  • Gerotor Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Up to 15% longer life than splash-lubricated units
  • Spin-On Oil Filter
  • Lengthens compressor life & improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Graphite Cylinder & Head Gaskets
  • Provide positive sealing integrity
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder, & heads
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under specs tab (EWK-7 or EWK-7PLUS)
  • Built To Order: takes up to 10 business days to ship from Quincy
  • Quincy Part #: 2020019300 - Quincy Model #: 3103DS12HCA20
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

5103DS12HCA20
specs product image PID-80045
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
32.2
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
850 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Power Type
Electric
UPC
791326010315
Additional Model Numbers

3103DS12HCA20, 5103DS12HCA20
