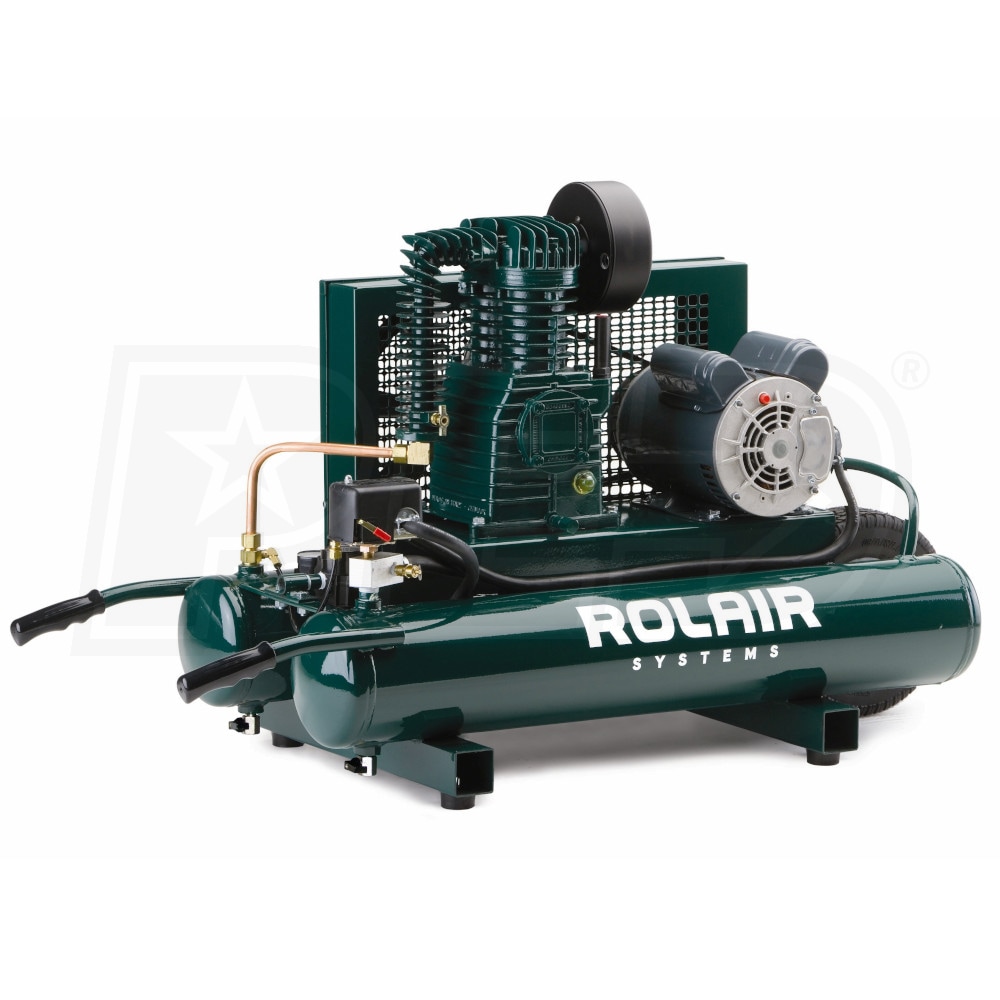

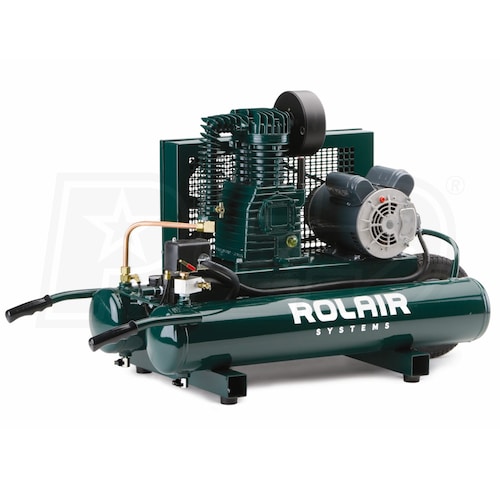

Rolair 2-HP 9-Gallon Electric Dual Voltage Wheelbarrow Air Compressor (115-230V 1-Phase)

Model:

6820K17D

Write A Review
$1,402.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Rolair 2-HP 9-Gallon Electric Dual Voltage Wheelbarrow Air Compressor (115-230V 1-Phase)
Rolair 2-HP 9-Gallon Electric Dual Voltage Wheelbarrow Air Compressor (115-230V 1-Phase)
Model: 6820K17D
$1,402.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Wheel Barrow

CFM

8.8

Tank Size

9

  • 2-HP Dual Voltage 115V/230V Motor
  • Open drip proof prevents fluids from entering
  • Dual voltage switch; Must be rewired for 230V use
  • Low 1740 RPM and ball bearings provide greater durability
  • Heavy-Duty Single-Stage Splash Lubricated Pump
  • Cast-iron twin cylinders and 11” multi-finned flywheel
  • Aluminum alloy connecting rods with automotive style inserts
  • Hardened steel valve plates with Swedish lamellar reed valves
  • Wheel Barrow Style w/ 9-Gallon (Total) Twin-Tank
  • Lightweight, low-profile design allows maximum maneuverability
  • Totally enclosed steel belt guard protects user and unit during transport
  • Air-Cooled Aftercooler
  • Cools down air and protects against water in system
  • Less corrosion of pipes and tools means less downtime
  • Overload Protected With Manual Reset
  • Protects the air compressor, lets you get back to work quickly
  • Dual Control Operation
  • Allows it to run start/stop or constant-speed operation
  • High-Quality Features
  • Pressure gauge 0-200 in 5 lb. graduations
  • Intake filter with silencer and replaceable element
  • Square D pressure switch with unloader and safety valve
  • 1-Year Limited Manufacturer Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

6820K17D
specs product image PID-111556
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
8.8
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
9 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
174 Pounds
CARB Compliant
No
Consumer Warranty
1 Year
Product Length
46 Inches
Product Width
19 Inches
Product Height
28 Inches
Power Type
Electric
