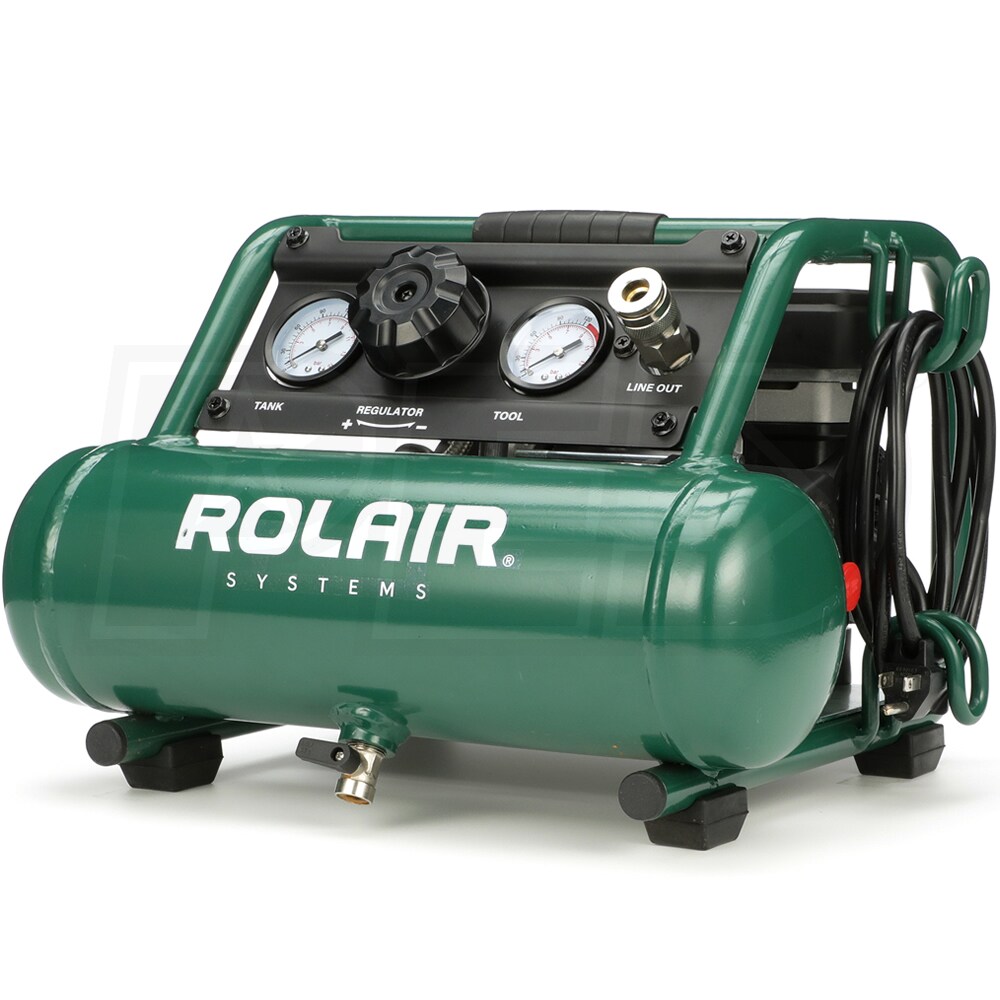

Rolair 1/2 HP 1-Gallon Direct Drive Hot Dog Air Compressor

Model:

AB5PLUS

Write A Review
$227.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Rolair 1/2 HP 1-Gallon Direct Drive Hot Dog Air Compressor
Rolair 1/2 HP 1-Gallon Direct Drive Hot Dog Air Compressor
Model: AB5PLUS
$227.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Hot Dog

CFM

1.0

Tank Size

1

  • Rolair Single Stage Oilless Air Compressor
  • Runs on 115-Volt household power & only draws 2.8 amps
  • Great for do-it-yourselfers & crafts people
  • Cast Aluminum Single Cylinder Pump
  • Industrial grade ball bearings for greater durability
  • Stainless steel reed valve lasts longer than fiber versions
  • 1/2 Horsepower 1700 RPM Motor
  • Delivers 1.0 CFM at 90 PSI to power light weight air tools
  • Light Weight & Portable
  • Weighs only 30 pounds, easy to move from task to task
  • Roll cage design protects the pump & motor
  • Air Line Regulator
  • Set the pressure to suit the project
  • Keep tires inflated to proper pressure for best mileage
  • Control Panel With Dual Gauges
  • Check tank & tool pressure at a glance
  • 1/4" universal coupler works with many air tools
  • Ball Valve Drain Cock
  • Simplifies tank drainage & maintenance
  • Pressure relief valve for safety
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

AB5PLUS
specs product image PID-100815
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
59
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
2.8
Engine
HP
.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.0
CFM Rated @
90 PSI
CFM @ 40 PSI
1.6
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1 Gallon
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
30 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16.25 Inches
Product Width
14.25 Inches
Product Height
11.15 Inches
Power Type
Electric
UPC
662865012446
