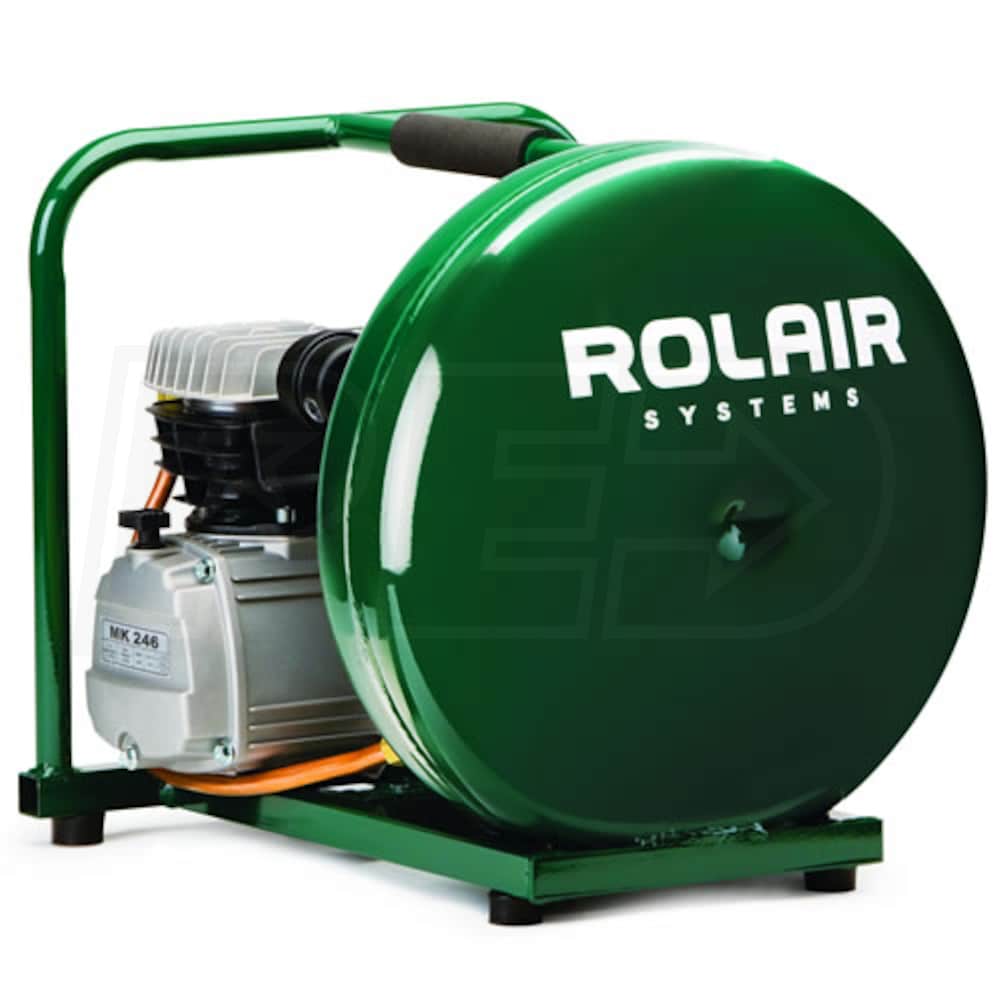

Rolair 2-HP 4.5-Gallon Professional Pancake Air Compressor
Model:
D2002HPV5
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Pancake
CFM
4.1
Tank Size
4.5
- 2 HP 3400 RPM Motor
- Heavy duty, industrial grade 115V motor stands up to frequent use
- Ball bearings provide greater durability
- Contractor-Grade Single Stage Pump
- Durable stainless reed valves & cast iron cylinder last longer
- Ball bearings, filter/silencer, & splash lube run smooth & quiet
- Overload Protected With Manual Reset
- Protects the air compressor, lets you get back to work quickly
- Portable & Powerful 110-135 PSI Operating Pressure
- 100% duty cycle puts out 4.1 CFM @ 90 PSI
- Easy to transport at 62 pounds
- Built-In Regulator With Gauge
- Lets you adjust the air line pressure accurately
- Safety relief valve protects you in case of overload
- Factory Tested 4.3 Gallon Air Tank
- 12 oz. crankcase is pre-filled with oil; arrives ready to work
- Metal Filter/Silencer With Replaceable Element
- Keeps compressor running clean & quiet
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
D2002HPV5
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
80
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14.2
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.1
CFM Rated @
90 PSI
CFM @ 40 PSI
5.41
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Size
4.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
62 Pounds
Consumer Warranty
1 Year
Product Length
18 Inches
Product Width
16 Inches
Product Height
17 Inches
Power Type
Electric
UPC
662865411515
