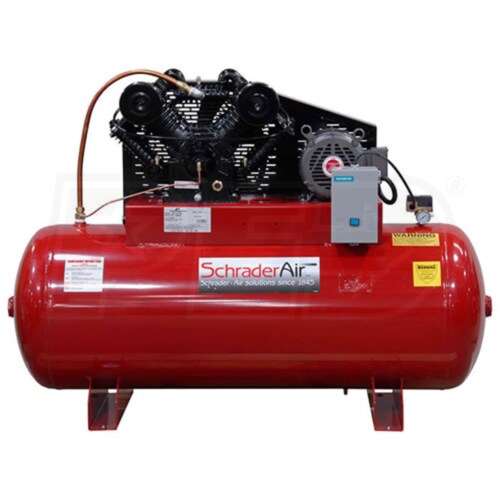

Schrader 7.5-HP 80-Gallon Two-Stage Horizontal Air Compressor (230V 1-Phase)
Model:
SA37580H1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
24
Tank Size
80
- 7.5 HP Professional Series Air Compressor
- Designed for most auto repair, tire & body shops
- Also suited for dry cleaning, production operations, etc.
- Super Low 600 RPM 4-Cylinder Cast Iron Pump
- Provides maximum pump life with minimum wear
- Baldor Industrial Electric Motor
- Centrifugal unloader increases motor life
- Finned Aftercooler & Intercooler
- Provide higher operating efficiency
- Splash Lubrication
- Simple, reliable, & easy to maintain
- Sight glass lets you check oil level at a glance
- Inlet Filter/Silencer
- Lower sound levels & longer maintenance intervals
- 80 Gallon Air Storage Tank
- ASME certified for durability & safety
- Factory preset pressure switch on at 145, off at 175 PSI
- Durable solid steel base with bolt-down claw feet
Specifications
SA37580H1
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
720 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
71 Inches
Product Width
24 Inches
Product Height
51 Inches
Power Type
Electric
