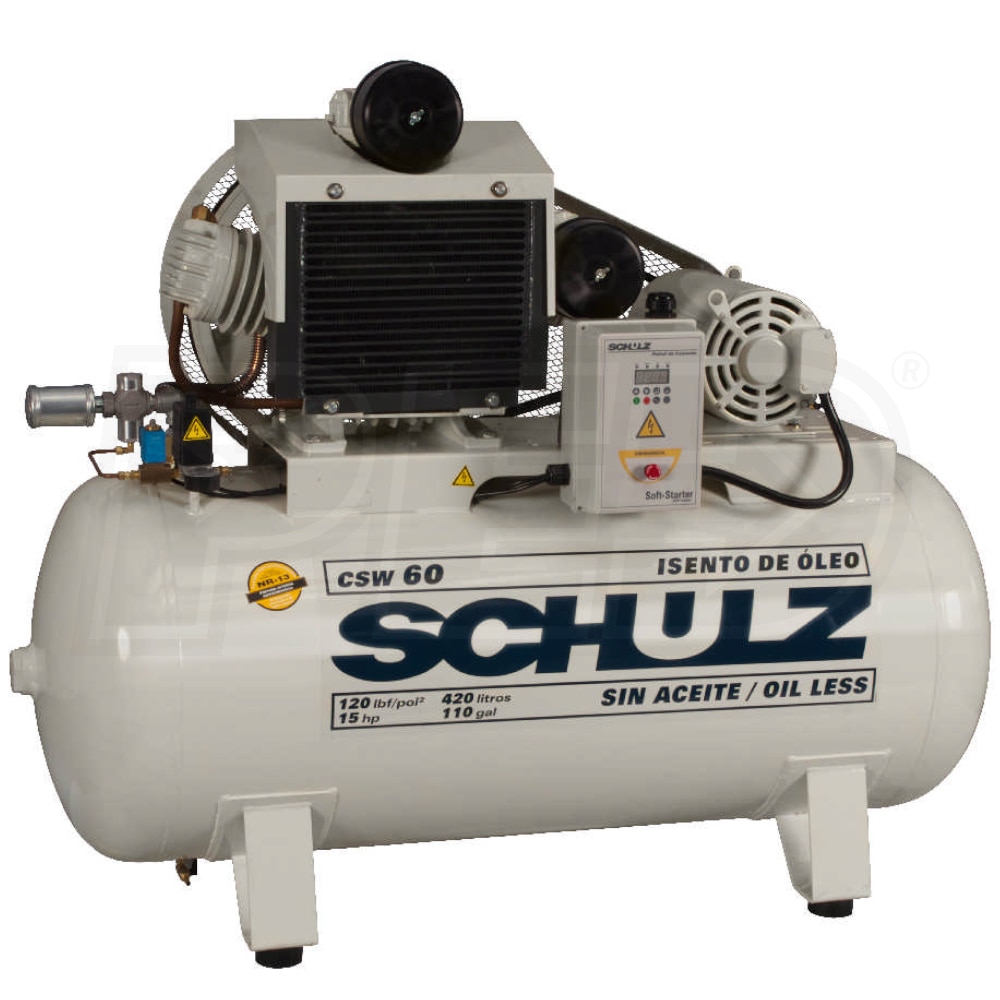

Schulz 15-HP 120-Gallon Oil Free Two-Stage Horizontal Air Compressor (208-230/460V 3-Phase)

Model:

15120HW60-3

Write A Review
$6,552.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Schulz 15-HP 120-Gallon Oil Free Two-Stage Horizontal Air Compressor (208-230/460V 3-Phase)
Schulz 15-HP 120-Gallon Oil Free Two-Stage Horizontal Air Compressor (208-230/460V 3-Phase)
Model: 15120HW60-3
$6,552.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

37.6

Tank Size

120

  • Schulz 15120HW60-3 - Oil Free 15-HP 120-Gallon Two-Stage Air Compressor
  • Ideal for clinics, offices or critical industrial processes
  • Oil Free , Belt-Drive, Cast Iron Pump (880 RPM)
  • Runs cooler, lasts longer due to the space between each cylinder
  • Deeper cylinder fins for additional heat dissipation
  • Swedish Steel Valves
  • Quality components contribute to pump efficiency
  • 15-HP Electric Motor (208-230/460V Three-Phase)
  • Reliably handles commercial duty demands
  • 120-Gallon Horizontal Steel Air Tank
  • Internal antibacterial powder coating for added protection
  • ASME Safety valve and tank drain
  • Built-In Pressure Switch
  • Make this compressor easy to operate
  • Intake Air Filter
  • Helps provide cleaner air to the compressor
  • Epoxy Coated Construction
  • Helps prevent pump and tank corrosion
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

15120HW60-3
specs product image PID-149203
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
91
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
37.6
CFM Rated @
120 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
980 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
29 Inches
Product Height
51 Inches
Power Type
Electric
UPC
7896893448974
Additional Model Numbers

934.7454-0, 15120HW60-3
