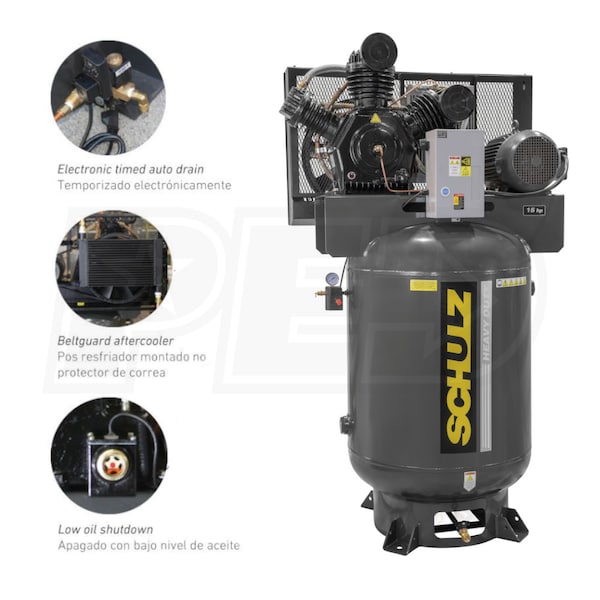

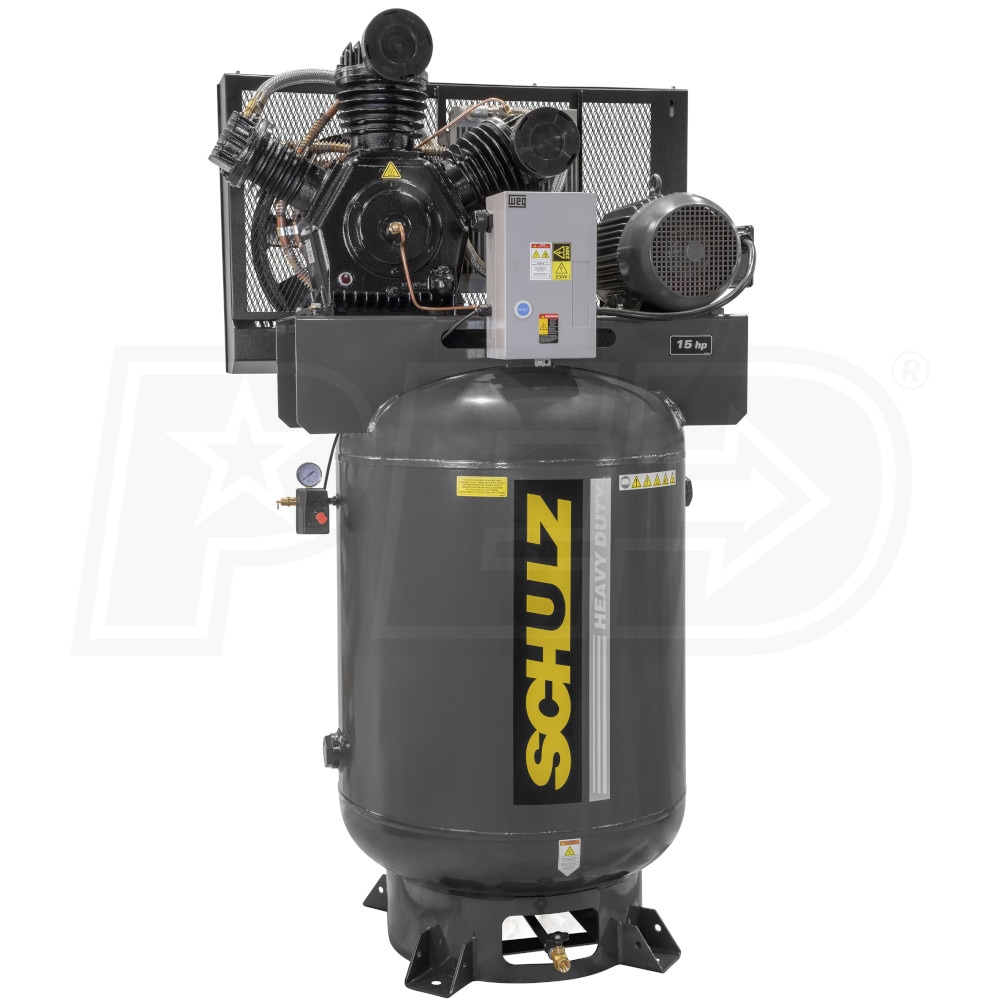

Schulz Premium Series 15-HP 120-Gallon Two-Stage Fully Packaged Air Compressor (460V 3-Phase)
Model:
P15120VW60X-3-460
+
Share This Product
Recommended Accessories
![Air Compressors Direct expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-1.png?v=1)
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Voltage
460 Volt AC
Phase
3-Phase
CFM
45.2
Tank Size
120
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Schulz Premium Line Two-Stage Air Compressor
- Offers quality compressed air with convenience and safety
- Includes low oil shutdown, beltguard aftercooler, auto drain & isolation pads
- 15HP Electric Motor w/ Magnetic Starter
- UL certified starter components ensure safety
- Versatile design for a wide variety of applications
- Solid Cast Iron Max “W” 3-Cylinder Pump w/ Low Oil Shutdown
- Centrifugal unloader releases pressure from cylinder
- Finned intercooler & deeper cylinder fins for additional heat dissipation
- Splash lubricated with oil sight glass, pressure switch, and safety valve
- Counterbalanced Crankshaft
- Sturdy and reliable for maximum performance
- Flywheel has efficient cooling design for lower running temperatures
- Large Intake Filter & Swedish Steel Valves
- Helps provide cleaner air to the compressor
- Quality components contribute to pump efficiency

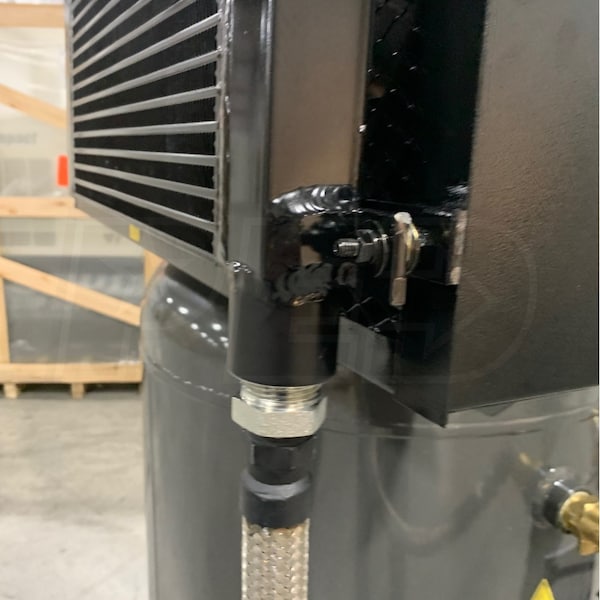

- Beltguard Aftercooler
- Cools hot compressed air while removing condensation
- Enclosed belt guard protects the belt and prevents injuries
- ASME Air Tank w/ Electronic Timed Auto Drain
- Isolation pads to lessen vibration and noise
- Routine draining prevents air contamination & prolongs tool life
- 1 Year Unit With 2 Year Pump Warranty
- CNC machine components for accurate fit & top performance
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
P15120VW60X-3-460
![specs product image PID-155199](/products-image/150/p15120vw60x-3-460_155199_1000_37bf15f5cc9afa2deac981bd6d079cba.jpg)
Engine
HP
15
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
45.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI

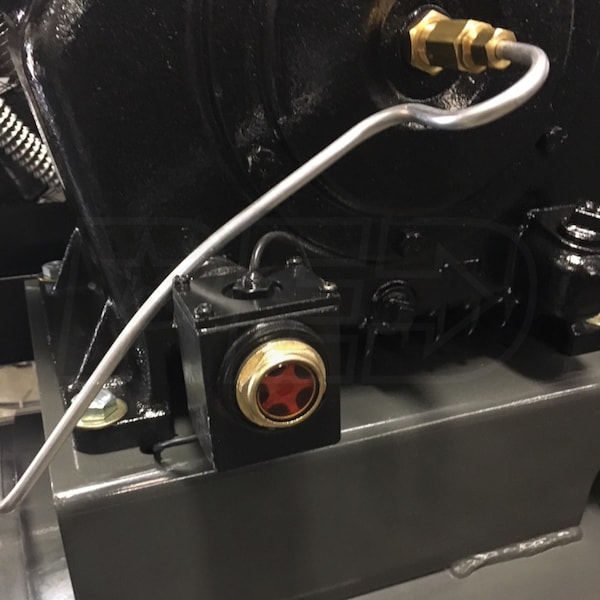

Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
938 Pounds
Certification
ASME, UL Rated
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
49 Inches
Product Width
30 Inches
Product Height
79.3 Inches
Power Type
Electric
UPC
7909480006218
