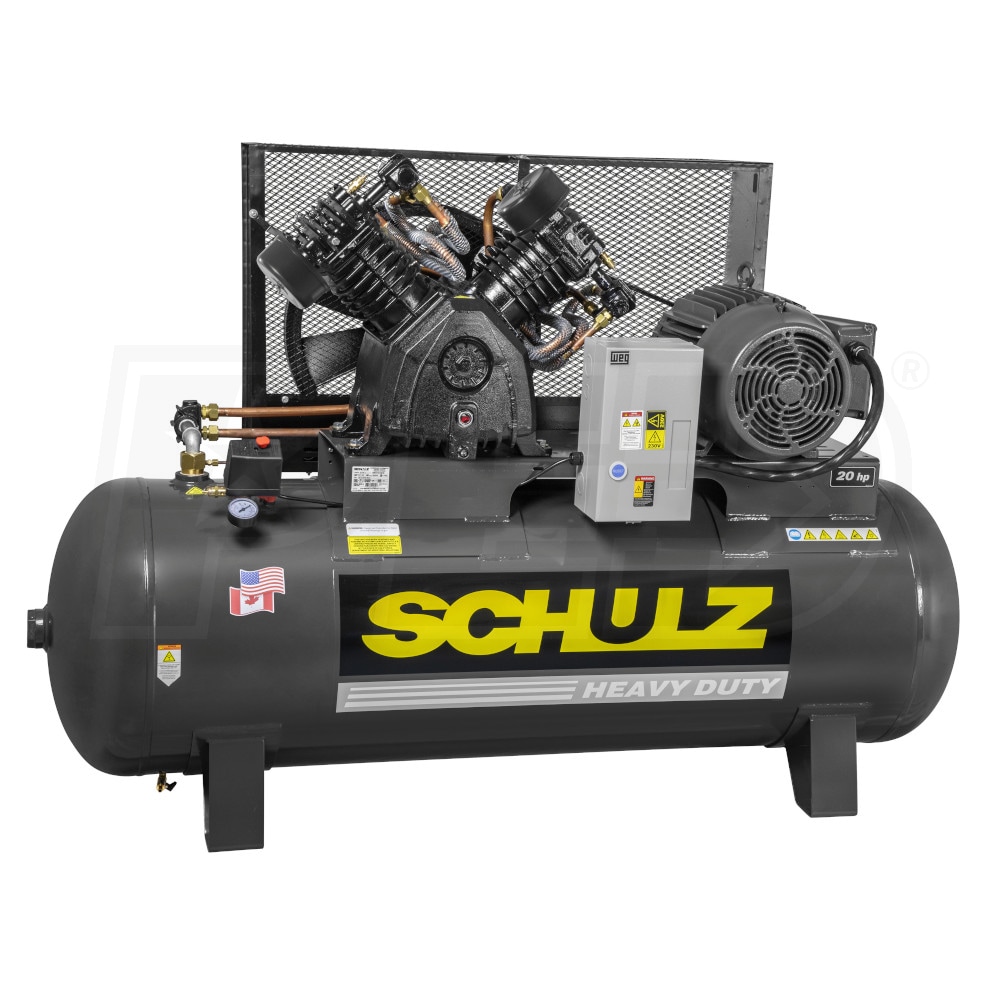

Schulz Premium Series 20-HP 120-Gallon Two-Stage Fully Packaged Air Compressor (460V 3-Phase)

Model:

P20120HLLV80BRP-3-460

Write A Review
$10,412.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Schulz Premium Series 20-HP 120-Gallon Two-Stage Fully Packaged Air Compressor (460V 3-Phase)
Schulz Premium Series 20-HP 120-Gallon Two-Stage Fully Packaged Air Compressor (460V 3-Phase)
Model: P20120HLLV80BRP-3-460
$10,412.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Voltage

460 Volt AC

Phase

3-Phase

CFM

58

Tank Size

120

  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Schulz Premium Line Two-Stage Air Compressor
  • Offers quality compressed air with convenience and safety

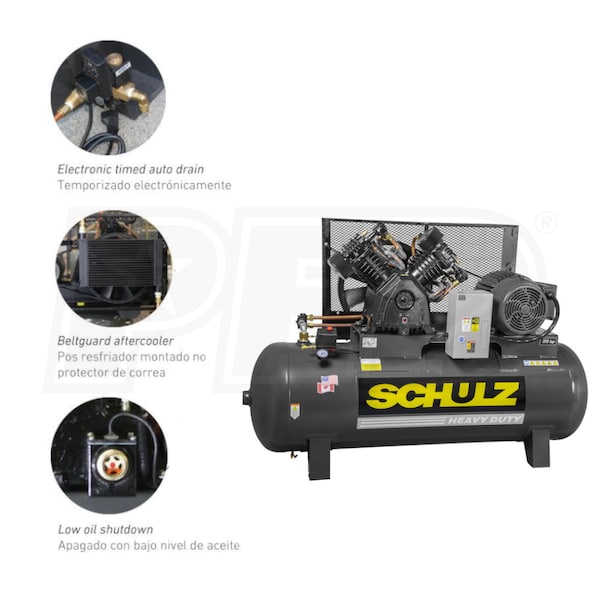

  • Includes low oil shutdown, beltguard aftercooler, auto drain & isolation pads
  • 20HP Electric Motor w/ Magnetic Starter
  • UL certified starter components ensure safety
  • Versatile design for a wide variety of applications

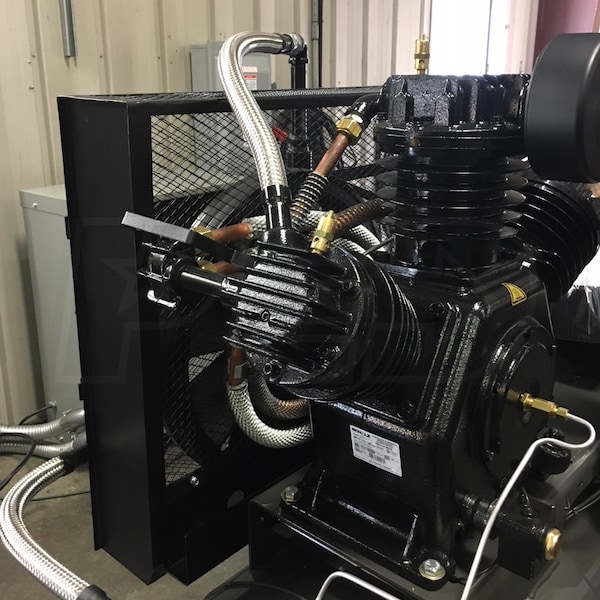

  • Solid Cast Iron Max “LV” 4-Cylinder Pump w/ Low Oil Shutdown
  • Deeper cylinder fins for additional heat dissipation
  • Runs cooler, lasts longer due to the space between each cylinder
  • Splash lubricated with oil sight glass, pressure switch, and safety valve
  • Counterbalanced Crankshaft
  • Sturdy and reliable for maximum performance
  • Flywheel has efficient cooling design for lower running temperatures
  • Large Intake Filter & Swedish Steel Valves
  • Helps provide cleaner air to the compressor
  • Quality components contribute to pump efficiency

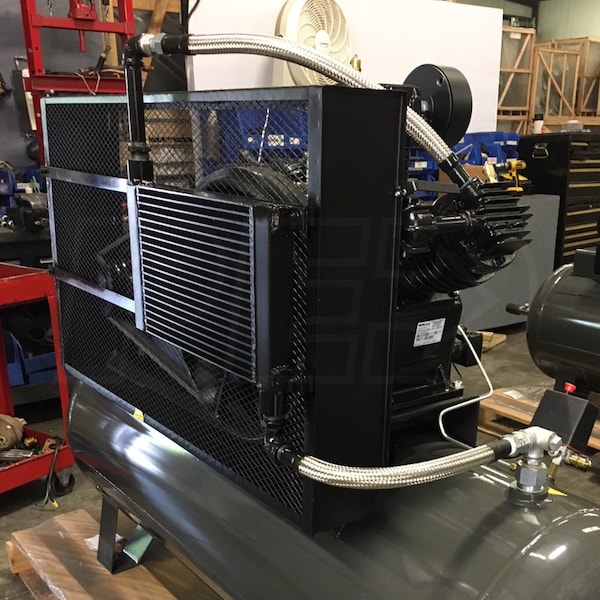

  • Beltguard Aftercooler
  • Cools hot compressed air while removing condensation
  • Enclosed belt guard protects the belt and prevents injuries

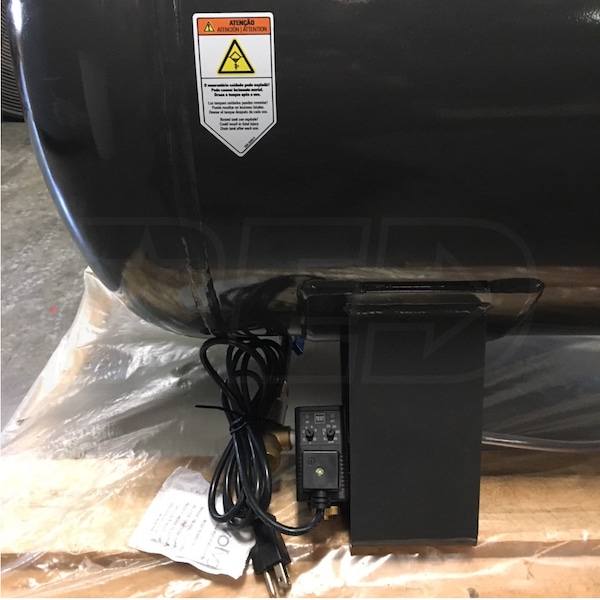

  • ASME Air Tank w/ Electronic Timed Auto Drain
  • Isolation pads to lessen vibration and noise
  • Routine draining prevents air contamination and prolongs tool life
  • 1 Year Unit With 2 Year Pump Warranty
  • CNC machine components for accurate fit and top performance
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

P20120HLLV80BRP-3-460
specs product image PID-155202
Engine
HP
20
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
58
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI

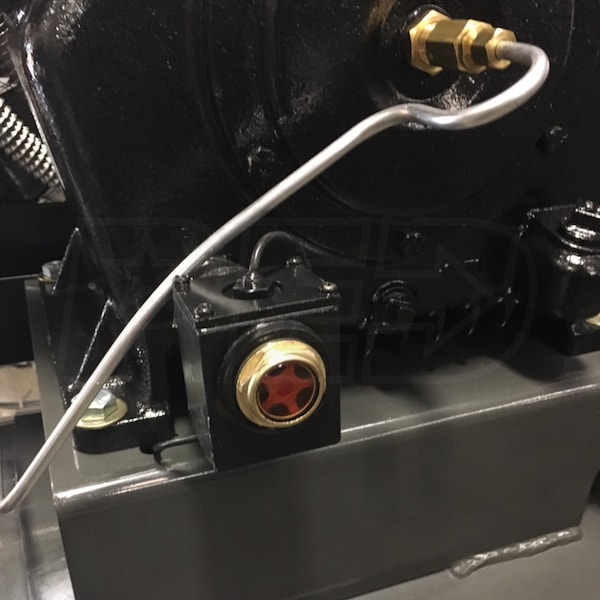

Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
1065 Pounds
Certification
ASME, UL Rated
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78.3 Inches
Product Width
28.7 Inches
Product Height
51.2 Inches
Power Type
Electric
UPC
7896893448998
