VIAIR 325C Medium Duty 12-Volt 2.5-Gallon 150-PSI Onboard Air System (33% Duty Cycle @ 100 PSI) Up To 33" Tires

Model:

10003

Write A Review
$320.14
Was $328.46
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

VIAIR 325C Medium Duty 12-Volt 2.5-Gallon 150-PSI Onboard Air System (33% Duty Cycle @ 100 PSI) Up To 33" Tires
VIAIR 325C Medium Duty 12-Volt 2.5-Gallon 150-PSI Onboard Air System (33% Duty Cycle @ 100 PSI) Up To 33" Tires
Model: 10003
$320.14
Was $328.46
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

DC Compressors

CFM

1.17

Tank Size

2.5

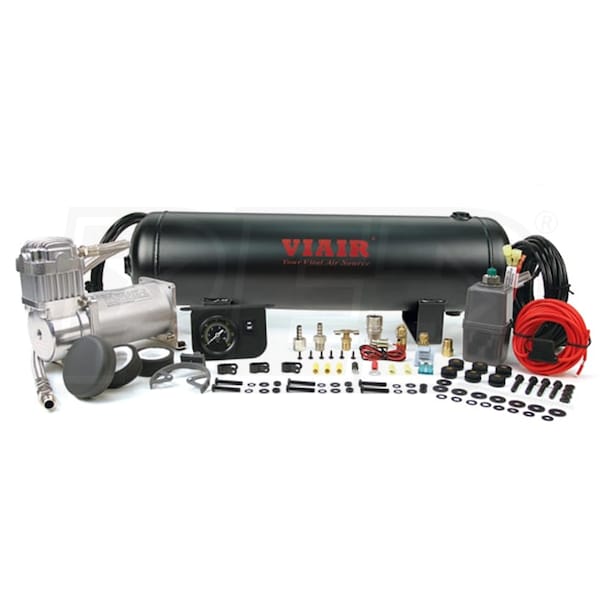

  • Pre-Packaged Compressed Air Solution
  • A complete pneumatic system w/ all components needed to install
  • Includes:
  • 325C VIAIR Compressor
  • 2.5 Gallon VIAIR Air Tank
  • 1/4" NPT Quick Connect Coupler (M)
  • Dash Panel Gauge with ON/OFF Switch
  • Pressure Switch with Relay (110 PSI on, 150 PSI off)
  • Reducer (1/8" NPT F to 1/4" NPT M)
  • 1/4" NPT 175 PSI Safety Valve
  • 1/4" NPT Drain Cock
  • 4" Strip of Continuous Grommet Material
  • 20ft. 12-Gauge Wire with Inline Fuse Holder
  • Electrical Connections
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

10003
specs product image PID-5061
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
21
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.17
CFM Rated @
40 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
33%
Tank
Tank Size
2.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
30 Pounds
Consumer Warranty
1 Year
Product Length
27 Inches
Product Width
15 Inches
Product Height
10 Inches
Power Type
Electric
UPC
818114002038

Reviews

(1)
VIAIR 10003 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
I'm considering the VAIR compressor with tank. I'm just not sure if the medium duty would be sufficient or if the heavy duty one would provide more long-term use. I would use it infrequently to air up tires in the backcountry. Thanx.
Mike Endres
from Colorado
June 29, 2012
