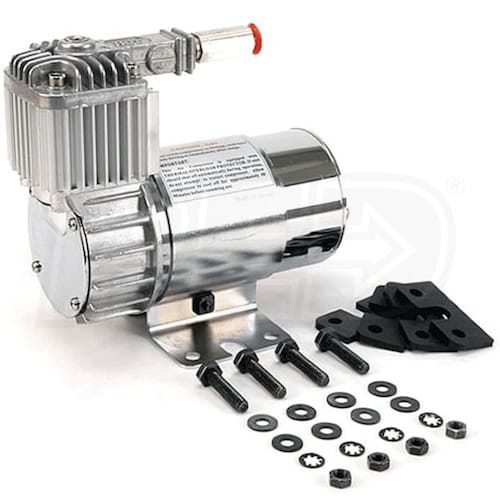

VIAIR 100C 12-Volt 130-PSI Air Compressor Kit - Chrome (15% Duty Cycle @ 100 PSI) w/ Omega Mounting Bracket
Model:
10016
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
DC Compressors
CFM
.59
Tank Size
0
- Dependable 12-Volt Permanent Magnetic Motor
- Bare compressor comes standard with a chrome motor housing and chrome end plates
- Insulated wiring is pre-installed, check valve is included; use of a pressure switch & 12V relay is recommended
- 15% At 100 PSI Duty Cycle
- Work for up to 9 minutes on, 51 minutes off per hour; 30 minutes continuous use at 72° & 30 PSI
- 14 amp maximum 12-volt amp draw; maximum 1-gallon recommended tank size
- Quickly & efficiently puts out 1.27 CFM flow at zero PSI head pressure; .59 CFM @ 90 PSI
- Automatic Thermal Overload Protector
- Protects the compressor from overheating & damage from excessive use
- Run in a well ventilated area, works best with engine running
- Compact & Versatile
- Weighs only 3.45 pounds, measures 6.0″L x 3.5″W x 5.3″H
- Omega Bracket Mounting Hardware & Vibration Isolators Included
- Use thread sealant for proper installation, teflon tape not recommended. Recommended torque is 12-15 ft.lbs.
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
10016
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
14
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.59
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
130 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
15%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
3.55 Pounds
Consumer Warranty
1 Year
Product Length
6 Inches
Product Width
3.5 Inches
Product Height
5.3 Inches
Power Type
Electric
UPC
818114000195
