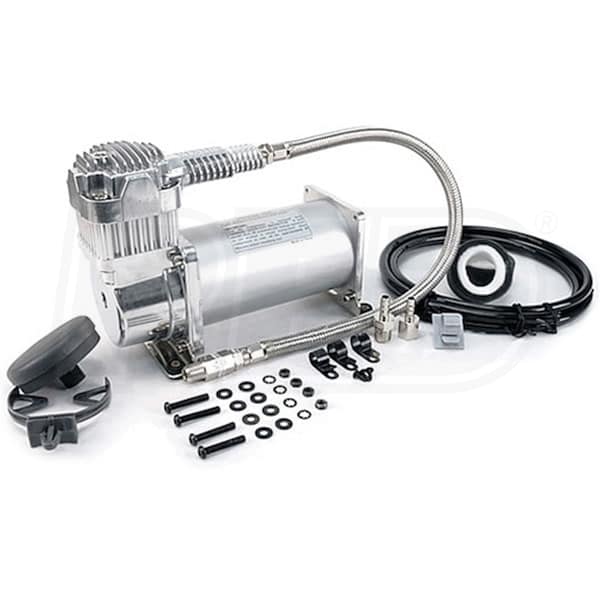

VIAIR 400C 12-Volt Tankless Air Compressor Kit (33% Duty Cycle @ 100 PSI)
Model:
40040
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
DC Compressors
CFM
1.52
Tank Size
0
- Dependable Permanent Magnetic Motor
- Keep the vehicle's engine running while using the compressor to prevent battery discharge & enhance performance
- Use of a relay is strongly recommended for installation, but is not included (40-amp relay value or higher)
- 33% At 100 PSI Duty Cycle
- Allows you to work for 18 minutes on, 40 minutes off; run in a well ventilated area
- 21 amp maximum 12-volt amp draw; maximum 5-gallon recommended tank size
- Quickly & efficiently puts out 2.62 CFM flow at zero PSI head pressure; 1.52 CFM @ 90 PSI
- Automatic Thermal Overload Protector
- Protects the compressor from overheating & damage from excessive use
- 1/4" NPT Stainless Steel Braided Leader Hose
- Includes inline check valve and insulated wiring for simple installation
- Remote Mount Air Filter Assembly
- Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
- Installation instructions & air line for remote mount air filter are included
- Compact & Versatile
- Weighs only 8.65 pounds, measures 9″L x 4″W x 6.75″H
- Mounting Hardware & Vibration Isolators Included
- Use thread sealant for proper installation, teflon tape not recommended. Recommended torque is 12-15 ft.lbs.
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
40040
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
21
Engine
HP
.25
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.52
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
33%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
8.65 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114004001
