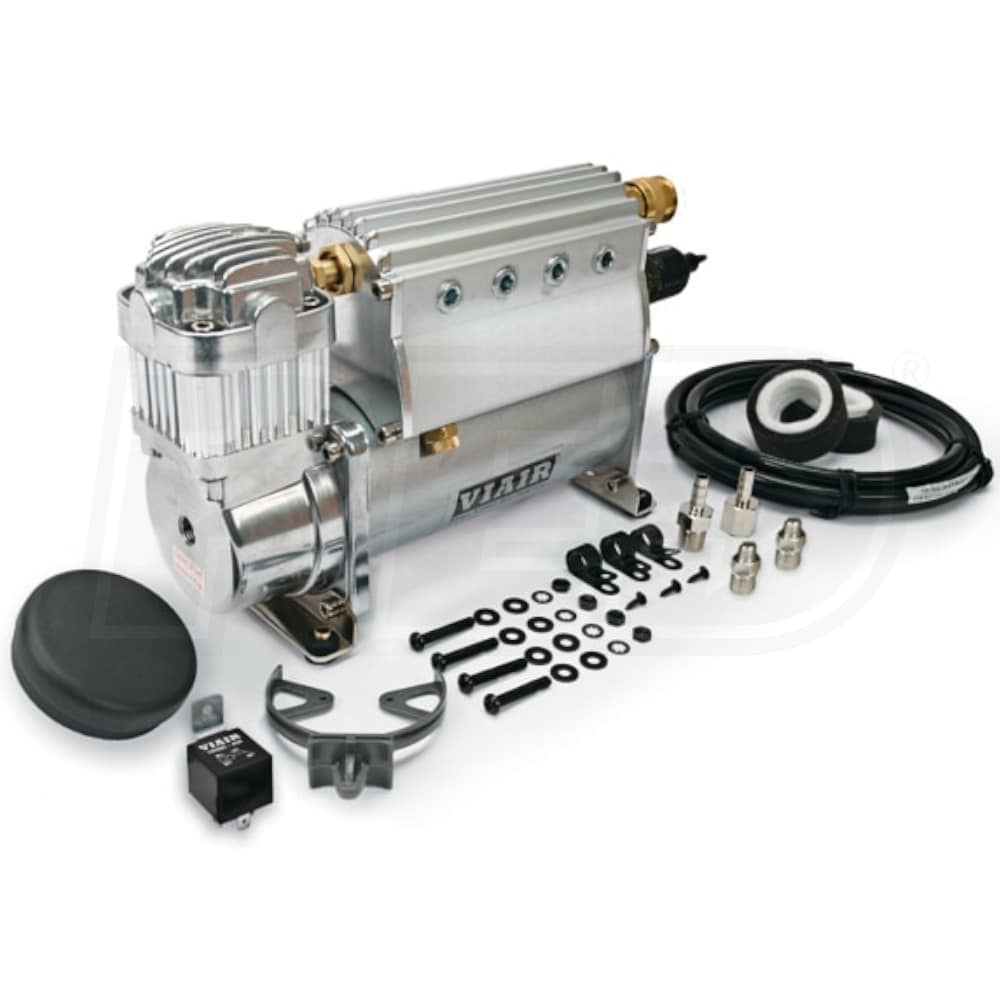

VIAIR Automatic Deployment Air 12-Volt 150-PSI Heavy-Duty Base Model Kit (85/105 PSI Switch - 2.3 CFM) Up To 35" Tires

Model:

42045

Write A Review
$325.84
Was $328.46
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

VIAIR Automatic Deployment Air 12-Volt 150-PSI Heavy-Duty Base Model Kit (85/105 PSI Switch - 2.3 CFM) Up To 35" Tires
VIAIR Automatic Deployment Air 12-Volt 150-PSI Heavy-Duty Base Model Kit (85/105 PSI Switch - 2.3 CFM) Up To 35" Tires
Model: 42045
$325.84
Was $328.46
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Grade

Consumer

Style

DC Compressors

CFM

1.28

  • ADA System Base Model With Mounting Hardware
  • Weighs only 10 pounds; measures only 9″L x 4″W x 6.75″H
  • Heavy-Duty 33% Duty Cycle @ 100 PSI (20 Minutes On/40 Minutes Off)
  • Tire inflation is made possible in a very compact space (42045 should not be used for Load Leveling)
  • 400C 12-Volt Compressor
  • Permanent magnetic motor delivers 1.28 CFM at 90 PSI; has a 30-amp maximum draw
  • Automatic thermal overload protector prevents the compressor from overheating
  • 12-Port Extruded Aluminum Air Distribution Tank
  • Provides a tire inflation station that's easy to adapt & install
  • Pre-Installed Pressure Switch
  • Turns on at 85 PSI, turns off at 105 PSI
  • Remote Mount Air Filter
  • Includes coiled air line for the remote mount filter & 2 replacement air filter elements
  • 40-Amp Relay
  • Makes it easy to wire the ADA System into your application
  • Also Includes:
  • Pre-installed safety valve, pre-installed 1/8" NPT drain cock, (8) pre-installed 1/4" NPT recessed port plugs,
  • Pre-installed quick-connect coupler, (2) 1/4" NPT to 1/8" BSP adapters, 1" NPT M & F barbed fittings for 1/4" air line
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

42045
specs product image PID-75149
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
30
Engine
HP
.25
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.28
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
33%
Tank
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114004254
