VIAIR Automatic Deployment Air 12-Volt 150-PSI Constant-Duty Base Model Kit (85/105 PSI Switch - 1.8 CFM) Up To 37" Tires
Model:
45052
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
DC Compressors
CFM
.97
- ADA System Base Model With Mounting Hardware
- Weighs only 12.5 pounds; measures only 9.38″L x 4″W x 6.75″H
- Constant-Duty 100% Duty Cycle @ 100 PSI (Up To 1 Hour Continuous Use)
- Tire inflation is made possible in a very compact space

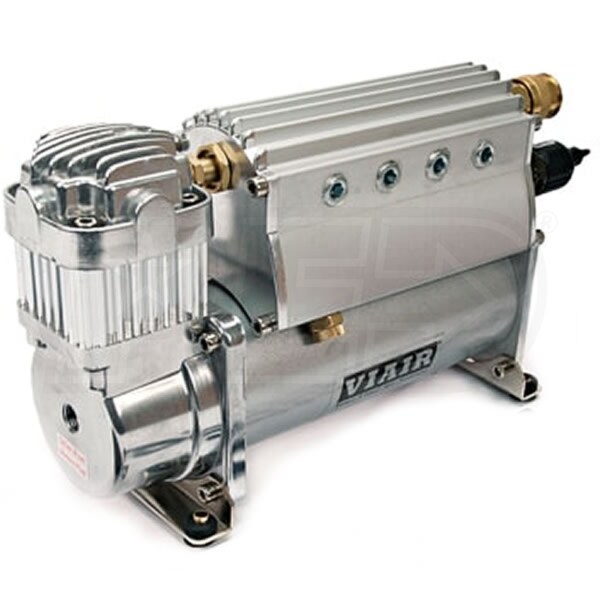

- 450C 12-Volt Compressor
- Permanent magnetic motor delivers .97 CFM at 90 PSI; has a 23-amp maximum draw
- Automatic thermal overload protector prevents the compressor from overheating
- 12-Port Extruded Aluminum Air Distribution Tank
- Provides a tire inflation station that's easy to adapt & install
- Pre-Installed Pressure Switch
- Turns on at 85 PSI, turns off at 105 PSI
- Remote Mount Air Filter
- Includes coiled air line for the remote mount filter & 2 replacement air filter elements
- 40-Amp Relay
- Makes it easy to wire the ADA System into your application
- Also Includes:
- Pre-installed safety valve, pre-installed 1/8" NPT drain cock, (8) pre-installed 1/4" NPT recessed port plugs,
- Pre-installed quick-connect coupler, (2) 1/4" NPT to 1/8" BSP adapters, 1" NPT M & F barbed fittings for 1/4" air line
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
45052
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
23
Engine
HP
.25
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.97
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
12.5 Pounds
Consumer Warranty
1 Year
Product Length
9.38 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114004483
