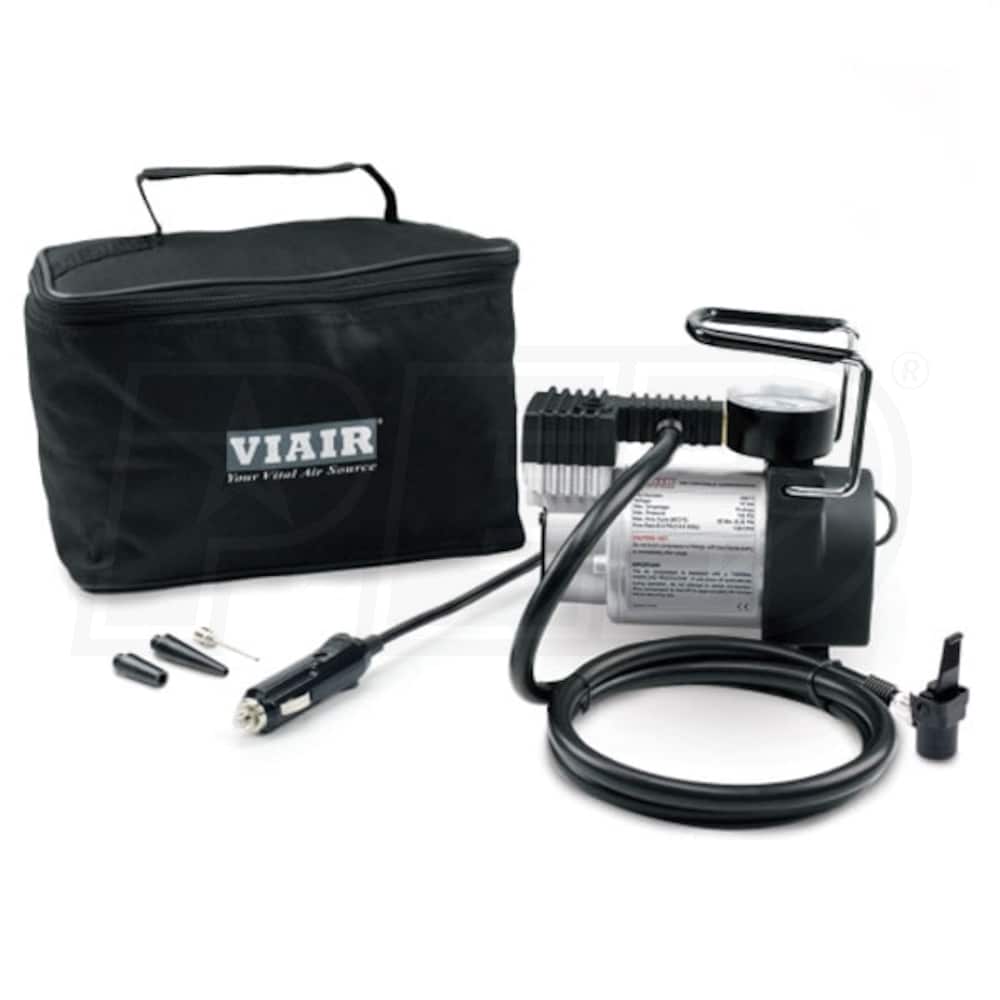

VIAIR 74P Sport Compact Series 12-Volt 100-PSI Portable Inflator Kit (30 Minutes @ 30 PSI) Up To 225/60R18 Size Tires

Model:

74

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
VIAIR 74P Sport Compact Series 12-Volt 100-PSI Portable Inflator Kit (30 Minutes @ 30 PSI) Up To 225/60R18 Size Tires
VIAIR 74P Sport Compact Series 12-Volt 100-PSI Portable Inflator Kit (30 Minutes @ 30 PSI) Up To 225/60R18 Size Tires
Model: 74
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

CFM

.38

  • Dependable 12-Volt Maintenance-Free Permanent Magnetic Motor
  • Inflate your tires by simply plugging into a 15-amp cigarette lighter, clamp the hose to your valve stem & switch on
  • Always check your vehicle's power port rating for maximum amperage before ordering
  • Large Top-Mounted 150 PSI Pressure Gauge
  • Maximum pressure is 100 PSI; delivers 1.06 CFM at zero head pressure, 0.38 CFM at 90 PSI
  • Tire pressure is monitored using the gauge by temporarily switching the unit off
  • 3 Piece Inflation Tips Kit Fits The Press-On Air Chuck
  • Inflates tires up to 225/60R18; also inflates sports balls & pool toys
  • Use only in well ventilated areas; engine should be running to provide best performance
  • Automatic Reset Thermal Protector
  • Prevents the compressor from overheating; resets when the compressor has cooled
  • Low Noise Operation
  • Runs at 65dB, about as loud as a vacuum cleaner
  • 16-Foot Power Cord & 4-Foot Air Hose
  • Let you work in a wide area around your car
  • Deluxe Carry Bag
  • Keeps hose & cord organized; easy to transfer between vehicles
  • 1 Year Limited Factory Warranty
  • Protects your investment against defects in materials and workmanship
  • The 70P Does Not Work With Presta Bicycle Valves
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

74
specs product image PID-75120
Motor
Voltage
12 Volt DC
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Amp Draw
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.38
CFM Rated @
90 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
100 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Included
No
Tank Outlet
1/4 Inch
Accessories
Pressure Gauge
Yes
Air Filter
No
Overview
Weight
5.05 Pounds
Consumer Warranty
1 Year
Product Length
6.5 Inches
Product Width
3.6 Inches
Product Height
6.2 Inches
Power Type
Electric
UPC
818114007040
